How To Connect

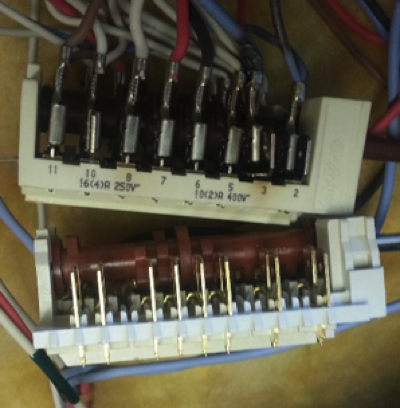

Switches 8050826 and 8061792 are 100% replaceable even if they look completely different to one another.
You can connect the existing cooker wiring wire to either of them as shown, in effect simply connecting from one terminal number to the same corresponding terminal on the other switch.
The terminal numbers on the new type switch (8061792) are small and may be difficult to read but they are there in between the terminals.
Models affected include:
|
Index |
Customer Name |
Producer Name |
|
54384 |
507EE2.31EHMsPFG(W |
507EE2.31EHMsPFG(W) |
|
54385 |
507CE2.316EHMsG(W) |
507CE2.316EHMsG(W) |
|
54387 |
6017CE2.333EHTaDGQ |
6017CE2.333EHTaDGQ(W) |
|
54388 |
6017CE2.333EHTADGQ |
6017CE2.333EHTaDGQ(Xx) |
|
54389 |
6017EE2.37EHTAFGQ( |
6017EE2.37EHTaFGQ(W) |
|
54390 |
6017EE2.37EHTAFGQ( |
6017EE2.37EHTaFGQ(Xx) |
